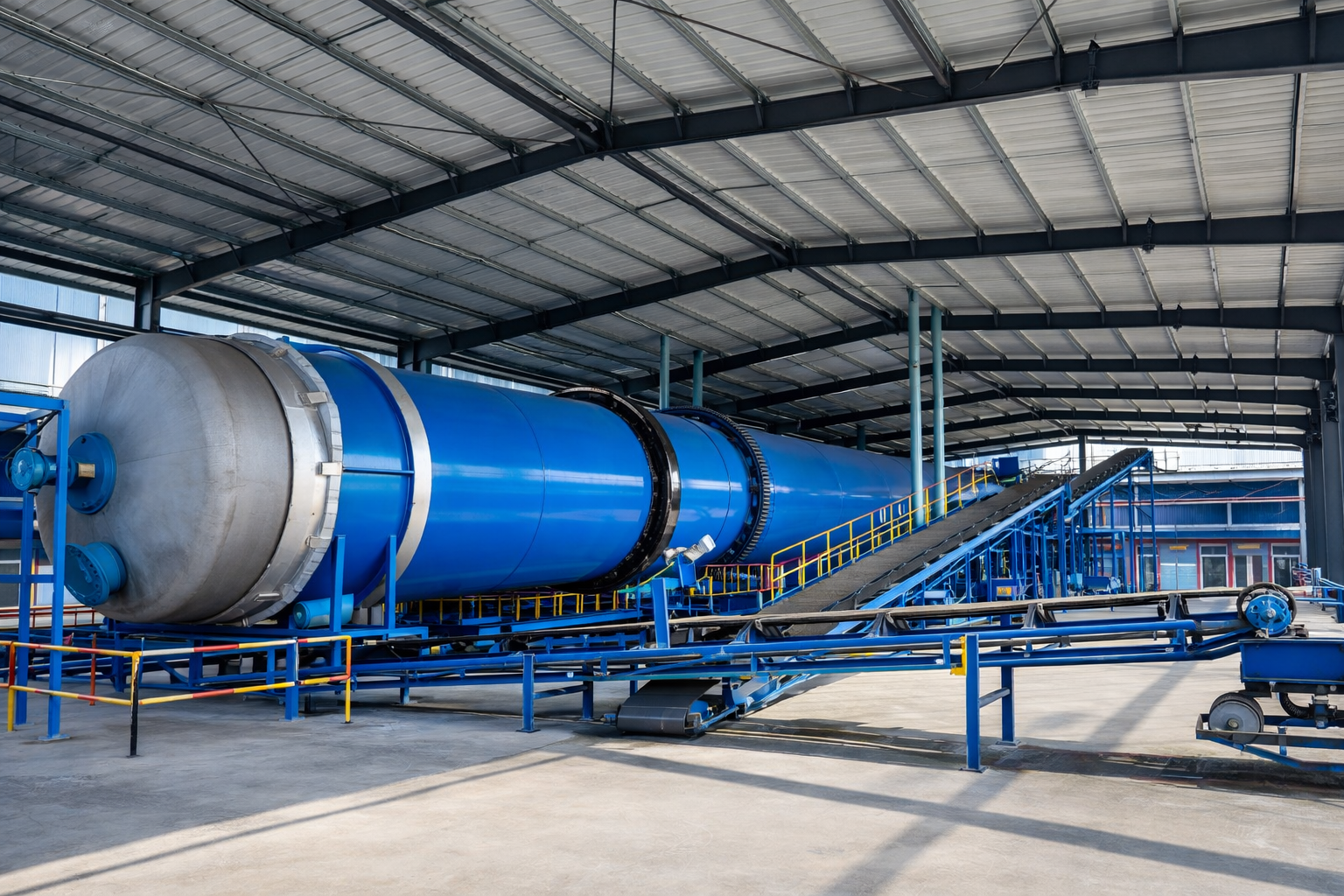

Coal Steam Type Rotary Dryer

Enquire Now
Download Brochure

Introduction

Kerone’s Coal Steam Type Rotary Dryer is an advanced indirect-heating drying system that utilizes steam as the primary heat transfer medium to gently and efficiently dry coal without direct contact between combustion gases and the coal material. In this system, steam flows through hollow flights, tubes, or a jacketed drum wall, transferring thermal energy conductively to the coal as it tumbles through the rotating drum. This indirect steam-heated design is particularly advantageous for processing coals that are susceptible to oxidation, combustion risk, or quality degradation when exposed to direct hot gas flames. The result is a safer, cleaner, and more thermally efficient drying process, especially suited for high-volatile or fine-grained coal types requiring careful moisture removal at controlled temperatures.

Why Choose Kerone Coal Steam Type Rotary Dryer

Kerone’s Coal Steam Type Rotary Dryer is the preferred choice for coal producers and processors who demand precise temperature control, minimal fire risk, and superior product quality preservation during drying. Unlike direct-fired dryers, the steam-heated design eliminates the risk of igniting coal dust or volatile gases, making it the safest available technology for drying high-volatile bituminous coals and fine coal fines. Kerone’s engineering team customizes the steam tube bundle or hollow-flight design to maximize heat transfer surface area within the drum, achieving excellent moisture evaporation rates at steam temperatures of 150–200°C. The closed-loop steam condensate recovery system also makes this dryer one of the most energy-efficient options in the market, with condensate returned to the boiler to minimize thermal energy waste.

Types and Features of Coal Steam Type Rotary Dryer

Kerone’s Coal Steam Type Rotary Dryer is available in two primary variants: the steam tube dryer (STD), which uses multiple longitudinal steam tubes arranged concentrically inside the drum, and the steam hollow-flight dryer, which circulates steam through specially fabricated hollow internal flights. The steam tube dryer excels in high-capacity coal drying applications, while the hollow-flight design provides superior heat transfer efficiency and gentle material handling for delicate fine coal products. Both variants include rotary steam joints for continuous steam supply to the rotating drum, pressure-rated steam headers, and condensate recovery systems. Custom steam pressure ratings from 3 bar to 10 bar are available to match plant steam availability and required drying temperatures.

Key Features

  • Indirect steam heating with zero direct gas-coal contact, eliminating combustion risk for high-volatile and fine-grained coal types.
  • Steam tube or hollow-flight configurations providing large heat transfer surface areas of up to 200 m² within a single drum.
  • Condensate recovery system integrated with rotary steam joints for maximum thermal efficiency and reduced boiler load.
  • Precision temperature control through steam pressure regulation, allowing drying temperatures to be maintained within ±5°C.
  • Explosion and fire-risk mitigation design — no open flame, no combustion gases, no coal ignition hazard inside the drum.
  • Compact design with high heat transfer efficiency delivering equivalent drying capacity in a smaller footprint than direct-fired alternatives.
  • All-welded pressure-rated steam circuits with safety relief valves and automatic steam flow control valves for safe operation.
  • PLC-based process control with steam pressure, flow, and condensate level monitoring for fully automated, safe dryer operation.

Powered by AI, ML & IoT

Future-Ready Engineering Driven by AI & IoT

Our advanced AI, ML, and IoT technologies, this solution delivers smarter automation, real-time insights, and predictive intelligence to enhance efficiency and drive future-ready growth.

Real-Time Monitoring & Control

Continuous tracking of process parameters with instant adjustments.

Predictive Maintenance

Intelligent fault detection to prevent failures before they occur.

Adaptive Process Optimization

Dynamic tuning of operations for maximum output and efficiency.

Cloud Dashboards & Analytics

Unified access to real-time insights and performance trends.

Energy & Resource Savings

Smarter utilization of energy to cut costs and reduce waste.

Secure IoT Connectivity

Encrypted data flow with seamless integration across plant systems.

Applications of Coal Steam Type Rotary Dryer

Kerone’s Coal Steam Type Rotary Dryers are extensively used in industries where indirect, contamination-free, fire-safe drying of coal is a primary operational requirement. Typical applications include:
    • Coking coal plants requiring precise moisture control of high-volatile bituminous coal without oxidation or fire risk during drying.
    • Fine coal and coal fines processing facilities where direct combustion gas contact would degrade coal quality or create explosion hazards.
    • Chemical and activated carbon production plants using coal as raw material requiring moisture reduction under controlled conditions.
    • Coal blend preparation for specialty metallurgical applications where tight moisture specifications directly impact coke quality.
    • Coal-to-liquid (CTL) and coal gasification plants requiring pre-dried, low-moisture coal feed for efficient gasifier performance.
    • Pharmaceutical-grade activated carbon manufacturing from coal requiring ultra-clean, contamination-free drying processes.
Kerone’s Coal Steam Type Rotary Dryer offers the safest, most thermally efficient, and quality-preserving method for drying coal across a wide range of industrial applications. Its indirect heating mechanism protects coal integrity, prevents fire hazards, and delivers consistent, specification-grade dried coal product in continuous operations. With Kerone’s expertise in steam circuit design, rotary equipment engineering, and process automation, customers can rely on a coal steam dryer that delivers long-term, trouble-free performance backed by comprehensive technical support and service. It is the definitive choice for coal processors who cannot compromise on safety, quality, or energy efficiency.

Seamless Export Connections Global & Local

Our Global Footprint in Industrial Excellence

Delivering world-class industrial and process solutions across countries with precision, innovation, and reliability.

PeruPeru
ChileChile
ArgentinaArgentina
MexicoMexico
ColombiaColombia
BrazilBrazil
USAUSA
CanadaCanada
United KingdomUnited Kingdom
FranceFrance
GermanyGermany
SpainSpain
ItalyItaly
NetherlandsNetherlands
SwedenSweden
SwitzerlandSwitzerland
PolandPoland
PortugalPortugal
IrelandIreland
CzechiaCzechia
RomaniaRomania
HungaryHungary
AustriaAustria
GreeceGreece
KazakhstanKazakhstan
UzbekistanUzbekistan
TurkmenistanTurkmenistan
AlgeriaAlgeria
EgyptEgypt
NigeriaNigeria
KenyaKenya
South AfricaSouth Africa
Saudi ArabiaSaudi Arabia
UAEUAE
IsraelIsrael
RussiaRussia
IndiaIndia
ChinaChina
JapanJapan
South KoreaSouth Korea
ThailandThailand
VietnamVietnam
MalaysiaMalaysia
SingaporeSingapore
IndonesiaIndonesia
PhilippinesPhilippines
AustraliaAustralia
New ZealandNew Zealand

Pan-India Presence. Local Expertise.

Raipur
Bilaspur
Panaji
Vasco da Gama
Gandhinagar
Ahmedabad
Surat
Chandigarh
Gurgaon
Shimla
Manali
Bengaluru
Mysore
Kochi
Pune
Mumbai
Thane
Navi Mumbai
Hyderabad
Chennai
Coimbatore
Kolkata
Lucknow
Jaipur
Udaipur
Jodhpur
Dehradun
Haridwar
Bhubaneswar

Product Gallery

Frequently Asked Questions (FAQ)

  • In the steam type dryer, heat is transferred to coal through steam-filled tubes or hollow flights, there is no direct contact between combustion gases and coal. This eliminates fire risk from coal dust ignition and prevents contamination of the dried coal product by combustion by-products.
