Multi Layer Band Heat Pump Dryer

Enquire Now
Download Brochure

Introduction

The Multi Layer Band Heat Pump Dryer, also referred to as a multi-deck or multi-tier band dryer with integrated heat pump conditioning, is an advanced continuous drying solution that achieves a very long effective drying path within a compact horizontal machine footprint by routing the product over multiple superimposed conveyor bands stacked vertically within a single insulated tunnel enclosure. In Kerone Engineering Solutions’ design, product enters the top band at the infeed end, travels its full length, then falls to the next band below and reverses direction, continuing this alternating back-and-forth progression through all band levels before being discharged at the outlet. The heat pump conditioning circuit manages the temperature and humidity profile across all levels simultaneously, with independent zone control ensuring that the psychrometric conditions in each tier match the drying stage requirements of the product at that point in its moisture removal journey. This design philosophy delivers exceptional drying uniformity and energy efficiency for products that require long contact times or gentle progressive moisture removal, while minimising the machine’s footprint compared to an equivalent single-pass belt dryer.

Why Choose Kerone Multi Layer Band Heat Pump Dryer

Designing a multi-layer band dryer correctly is considerably more complex than a single-pass belt system, as the inter-band product transfer points, the vertical stacking of air distribution plenums, and the management of moisture-laden air stratification across multiple horizontal layers all require careful engineering to achieve the stated drying uniformity. Kerone’s engineering team addresses these challenges through detailed computational modelling of air flow within the multi-tier enclosure, optimised inter-band cascade chute design to minimise product damage at transfer, and independent plenum pressure management in each tier to ensure consistent air velocity through the product bed regardless of its vertical position within the stack. This level of engineering rigour is why Kerone’s multi-layer band dryers consistently achieve the tight final moisture uniformity specifications required by food, nutraceutical, and specialty chemical clients.

Types and Features of Multi Layer Band Heat Pump Dryer

Kerone engineers multi-layer band dryers with 2, 3, 4, or 5 band tiers depending on the required drying time and available building height. Each tier operates an independent stainless steel perforated or wire mesh band driven by a separate variable speed motor, allowing tier speed to be independently adjusted to equalise the residence time across tiers as the product bed depth changes between levels. The heat pump module is designed to deliver conditioned air to each tier through separate plenum ducts, with damper control in each duct allowing fine adjustment of air volume and temperature at each tier level.

Key Features

  • Multi-tier band configuration delivers 2 to 5 times the drying length of a single-pass machine in the same floor footprint
  • Independent band speed control on each tier allows residence time optimisation to compensate for product bed depth variation after inter-tier transfer
  • Zone-specific heat pump air conditioning with individual plenum damper control ensures the correct psychrometric environment at each stage of drying
  • Gentle cascading inter-tier product transfer chutes fabricated from smooth stainless steel to minimise product breakage and fines generation
  • Compact footprint-to-drying-capacity ratio makes this design ideal for retrofit installations in existing buildings with limited floor area
  • Stainless steel band and band support structure with hygienic smooth surfaces and access panels at each tier level for cleaning and inspection
  • Real-time moisture profile tracking using in-line NIR or microwave moisture sensors at intermediate tiers for process feedback and quality control
  • Energy recovery of 55–70% compared to single-pass hot-air tunnel dryers of equivalent drying length and throughput capacity

Powered by AI, ML & IoT

Future-Ready Engineering Driven by AI & IoT

Our advanced AI, ML, and IoT technologies, this solution delivers smarter automation, real-time insights, and predictive intelligence to enhance efficiency and drive future-ready growth.

Real-Time Monitoring & Control

Continuous tracking of process parameters with instant adjustments.

Predictive Maintenance

Intelligent fault detection to prevent failures before they occur.

Adaptive Process Optimization

Dynamic tuning of operations for maximum output and efficiency.

Cloud Dashboards & Analytics

Unified access to real-time insights and performance trends.

Energy & Resource Savings

Smarter utilization of energy to cut costs and reduce waste.

Secure IoT Connectivity

Encrypted data flow with seamless integration across plant systems.

Applications of Multi Layer Band Heat Pump Dryer

Kerone’s Multi Layer Band Heat Pump Dryers are extensively used in food, spice, herbal, and specialty products manufacturing where long drying contact time is required in a constrained building footprint.
Typical applications include:
    • Continuous drying of chopped herbs, spice pieces, and botanical plant materials for food ingredient and herbal medicine manufacturing
    • Multi-pass drying of soft cheese, protein cake, and extruded snack products that require gentle progressive moisture removal without surface case hardening
    • Drying of pet food and aquaculture feed pellets requiring long dwell times to achieve low final moisture without elevated temperatures that damage protein quality
    • Continuous drying of non-woven fabric, technical textiles, and coated papers where extended dwell time in a controlled humidity environment is required
    • Drying of granulated specialty chemicals, coated pharmaceutical pellets, and functional food ingredients needing precise final moisture within ±0.2%
    • Processing of cut and dried cannabis, hemp biomass, and botanical material where temperature and aroma retention are both critical product quality parameters
The Multi Layer Band Heat Pump Dryer from Kerone Engineering Solutions is the answer for manufacturers who need the throughput capacity of a long-dwell continuous dryer but cannot commit the floor space a conventional single-pass tunnel would require. The multi-tier design efficiently multiplies drying length within the vertical dimension of the building while the heat pump circuit ensures that every metre of drying path contributes to the lowest possible energy cost per kilogram of moisture removed. For food, nutraceutical, and specialty chemical producers seeking to optimise both product quality and production cost, Kerone’s multi-layer band dryer delivers the engineering performance, process reliability, and operational economy that define world-class drying technology.

Seamless Export Connections Global & Local

Our Global Footprint in Industrial Excellence

Delivering world-class industrial and process solutions across countries with precision, innovation, and reliability.

PeruPeru
ChileChile
ArgentinaArgentina
MexicoMexico
ColombiaColombia
BrazilBrazil
USAUSA
CanadaCanada
United KingdomUnited Kingdom
FranceFrance
GermanyGermany
SpainSpain
ItalyItaly
NetherlandsNetherlands
SwedenSweden
SwitzerlandSwitzerland
PolandPoland
PortugalPortugal
IrelandIreland
CzechiaCzechia
RomaniaRomania
HungaryHungary
AustriaAustria
GreeceGreece
KazakhstanKazakhstan
UzbekistanUzbekistan
TurkmenistanTurkmenistan
AlgeriaAlgeria
EgyptEgypt
NigeriaNigeria
KenyaKenya
South AfricaSouth Africa
Saudi ArabiaSaudi Arabia
UAEUAE
IsraelIsrael
RussiaRussia
IndiaIndia
ChinaChina
JapanJapan
South KoreaSouth Korea
ThailandThailand
VietnamVietnam
MalaysiaMalaysia
SingaporeSingapore
IndonesiaIndonesia
PhilippinesPhilippines
AustraliaAustralia
New ZealandNew Zealand

Pan-India Presence. Local Expertise.

Raipur
Bilaspur
Panaji
Vasco da Gama
Gandhinagar
Ahmedabad
Surat
Chandigarh
Gurgaon
Shimla
Manali
Bengaluru
Mysore
Kochi
Pune
Mumbai
Thane
Navi Mumbai
Hyderabad
Chennai
Coimbatore
Kolkata
Lucknow
Jaipur
Udaipur
Jodhpur
Dehradun
Haridwar
Bhubaneswar

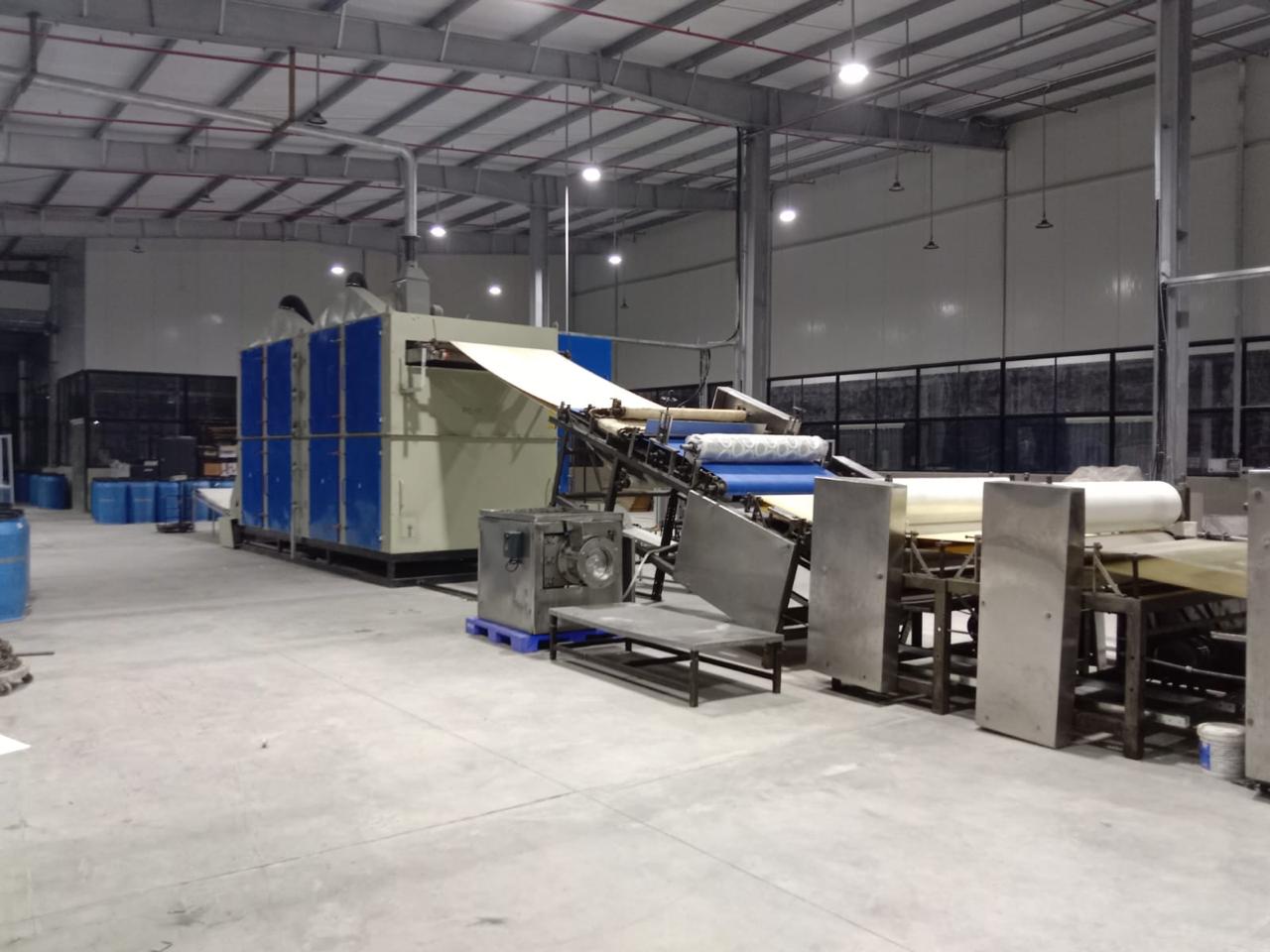

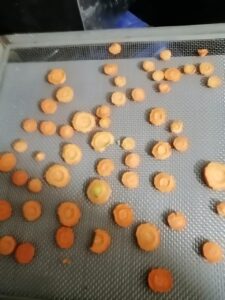

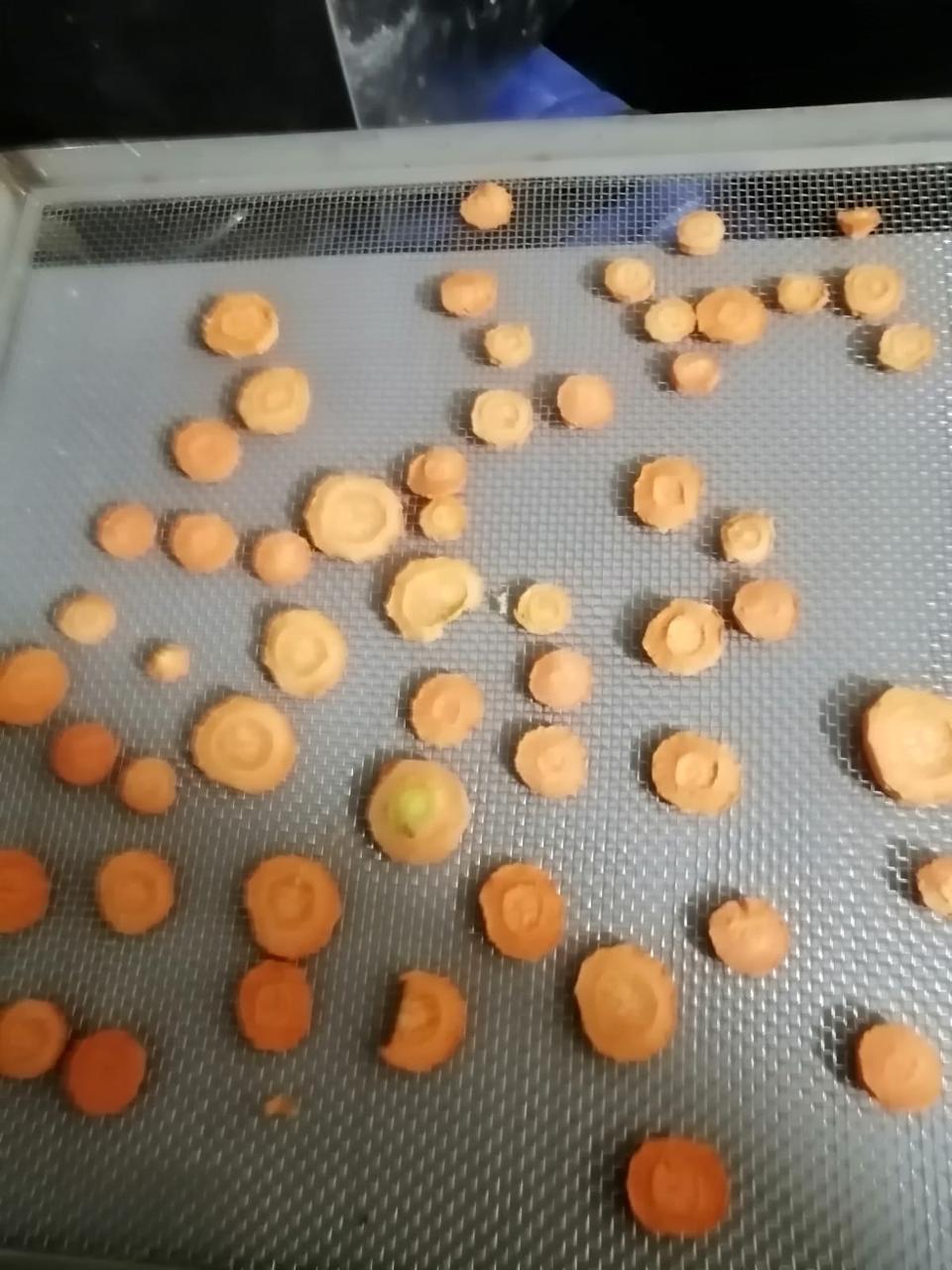

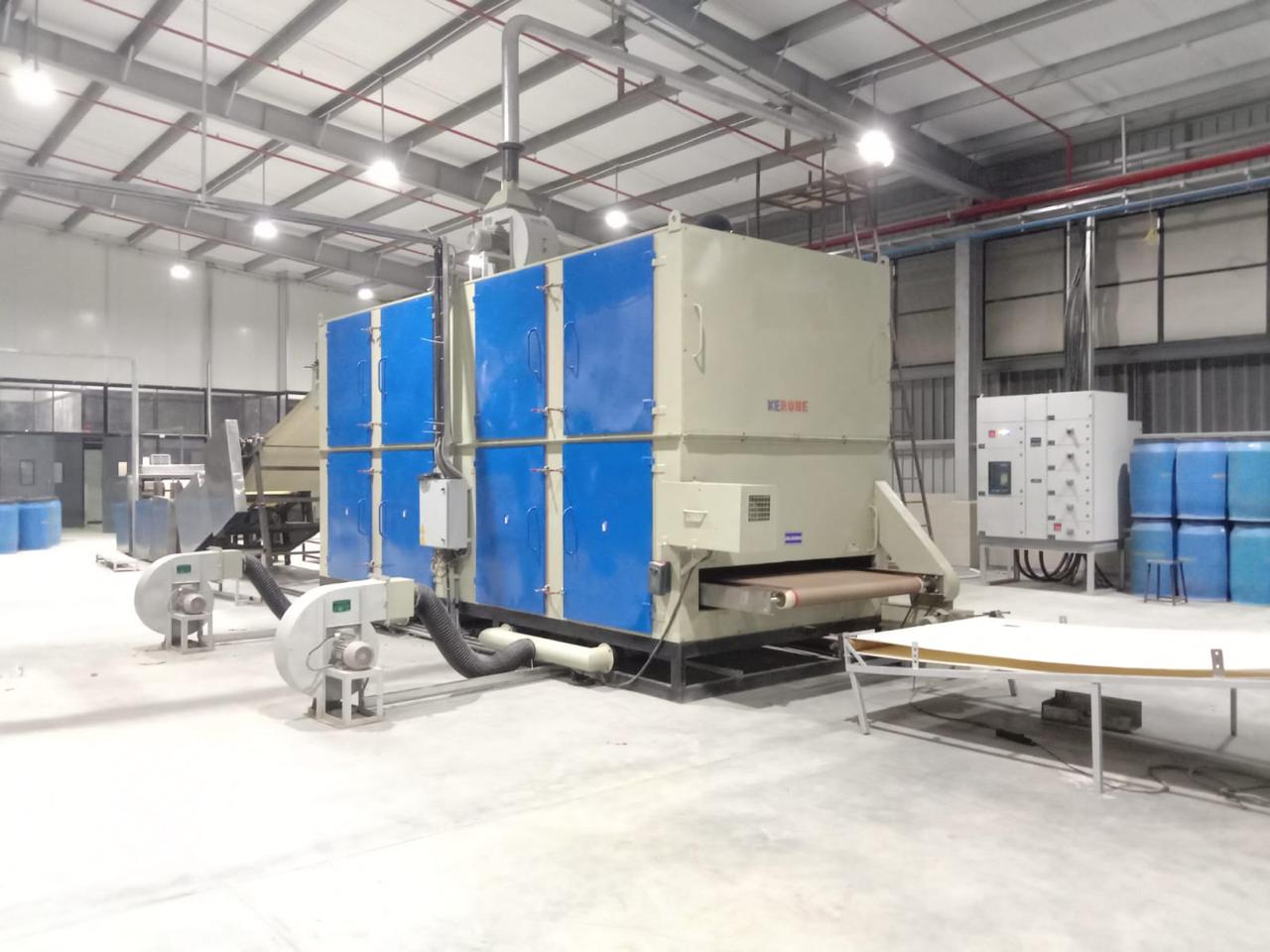

Product Gallery

Frequently Asked Questions (FAQ)

  • Kerone designs smooth, curved stainless steel cascade chutes at the band-to-band transfer points, with the chute angle and surface finish selected based on the product's friction coefficient and fragility. For very fragile products, vibratory or roller-assisted transfer systems are available.
