KERONE is pioneer in designing and manufacturing the box type dryers for various type of processes. We are helping our clients with our engineering solutions since last 50 years, our huge experience and commitment to quality had made us the first preference of clients for their need of heating, drying or cooling. Till now we have manufactured various types of box dryers by keeping need of client at front. We hold proficiency in designing and manufacturing box dryer, these dryers are highly values by the pharmaceuticals, foods, chemicals, sludge and other Industries.
With over four decades of expertise, Kerone has established itself as a global leader in designing and manufacturing box dryer tailored to industrial needs. The box dryer is engineered to provide rapid and efficient drying through innovative heat transfer methods, ensuring precise moisture control and uniform output quality.
Why Choose Kerone Box Dryer
Kerone’s box dryer stand out for their engineering precision, energy optimization, and adaptability to various industrial materials. Every system is designed with deep process understanding, ensuring reduced operational costs, enhanced product quality, and sustainable performance.
Box Dryers are used for drying in conventional process and delivers the best result. Air flow within the box dryer can be freely selected, which makes it suitable of various applications. The air circulation is provided by the dynamically placed axial flow type blower fans in the drying chamber, during the process.
Types and Features of Box Dryer
Kerone provides multiple variants of box dryer to cater to diverse production requirements. Depending on the drying principle and operational needs, these dryers may be configured for high-speed air flow, rotary motion, or continuous conveyance systems.
Each dryer integrates advanced control systems for temperature, air velocity, and residence time, ensuring precise drying for different materials, from food powders to chemical compounds.
Material to be processed in a box dryer is loaded into trays or containers and inserted into the dryer for a specified time duration.
Box dryers are constructed with a double-walled cabinet, typically featuring one or two doors. The space between the two walls is filled with fiberglass wool insulation to minimize heat loss during the drying process and ensure higher energy efficiency.
Features:
Material Compatibility: Supports a wide range of materials for drying applications.
Batch Processing: Materials are processed in batches, allowing precise control of drying parameters.
Ease of Operation: Equipped with doors for convenient loading and unloading, along with control panels to set time and temperature.
Easy Maintenance: Simple to clean, inspect, and maintain.
Flexible Airflow Options: Vertical, horizontal (up and down), parallel, and lateral airflow methods can be utilized.
Key Features
High drying rate with efficient heat transfer design.
Energy-efficient operation with controlled temperature settings.
Ideal for heat-sensitive and moisture-rich materials.
Fully automated operation with minimal manual intervention.
Robust construction suitable for continuous operation.
Uniform drying ensuring product consistency.
Flexible design adaptable for various industries.
Reduced operational downtime and maintenance costs.
Powered by AI, ML & IoT
Future-Ready Engineering Driven by AI & IoT
Our advanced AI, ML, and IoT technologies, this solution delivers smarter automation, real-time insights, and predictive intelligence to enhance efficiency and drive future-ready growth.
Real-Time Monitoring & Control
Continuous tracking of process parameters with instant adjustments.
Predictive Maintenance
Intelligent fault detection to prevent failures before they occur.
Adaptive Process Optimization
Dynamic tuning of operations for maximum output and efficiency.
Cloud Dashboards & Analytics
Unified access to real-time insights and performance trends.
Energy & Resource Savings
Smarter utilization of energy to cut costs and reduce waste.
Secure IoT Connectivity
Encrypted data flow with seamless integration across plant systems.
Applications of Box Dryer
Kerone’s box dryer are widely adopted in multiple industries, providing efficient moisture removal and maintaining material integrity. Common applications include:
Food & Dairy
Milk powder, starch, coffee, and fruit pulp drying.
Chemical
Drying of pigments, catalysts, and polymer granules.
Pharmaceutical
Spray-drying of extracts and heat-sensitive drugs.
Textile
Removal of residual moisture from fabric and yarn.
Agricultural
Drying of grains, seeds, and organic fertilizers.
Kerone’s box dryer exemplify innovation and quality. Built with advanced materials and intelligent controls, they ensure maximum efficiency, durability, and adaptability. Kerone continues to pioneer industrial drying solutions that combine technology with sustainability, empowering industries with precision drying performance.
This system is widely suitable for pharmaceutical, chemical, food, ceramic, and sludge processing industries where controlled and efficient drying is essential. It is particularly ideal for applications that require batch processing at different temperature ranges, allowing flexibility for handling diverse materials within the same setup. Additionally, it performs effectively with materials that have undefined or complex shapes, ensuring uniform processing even when product geometry is irregular or difficult to handle.
Seamless Export Connections Global & Local
Our Global Footprint in Industrial Excellence
Delivering world-class industrial and process solutions across countries with precision, innovation, and reliability.
Peru
Chile
Argentina
Mexico
Colombia
Brazil
USA
Canada
United Kingdom
France
Germany
Spain
Italy
Netherlands
Sweden
Switzerland
Poland
Portugal
Ireland
Czechia
Romania
Hungary
Austria
Greece
Kazakhstan
Uzbekistan
Turkmenistan
Algeria
Egypt
Nigeria
Kenya
South Africa
Saudi Arabia
UAE
Israel
Russia
India
China
Japan
South Korea
Thailand
Vietnam
Malaysia
Singapore
Indonesia
Philippines
Australia
New Zealand
Pan-India Presence. Local Expertise.
Raipur
Bilaspur
Panaji
Vasco da Gama
Gandhinagar
Ahmedabad
Surat
Chandigarh
Gurgaon
Shimla
Manali
Bengaluru
Mysore
Kochi
Pune
Mumbai
Thane
Navi Mumbai
Hyderabad
Chennai
Coimbatore
Kolkata
Lucknow
Jaipur
Udaipur
Jodhpur
Dehradun
Haridwar
Bhubaneswar

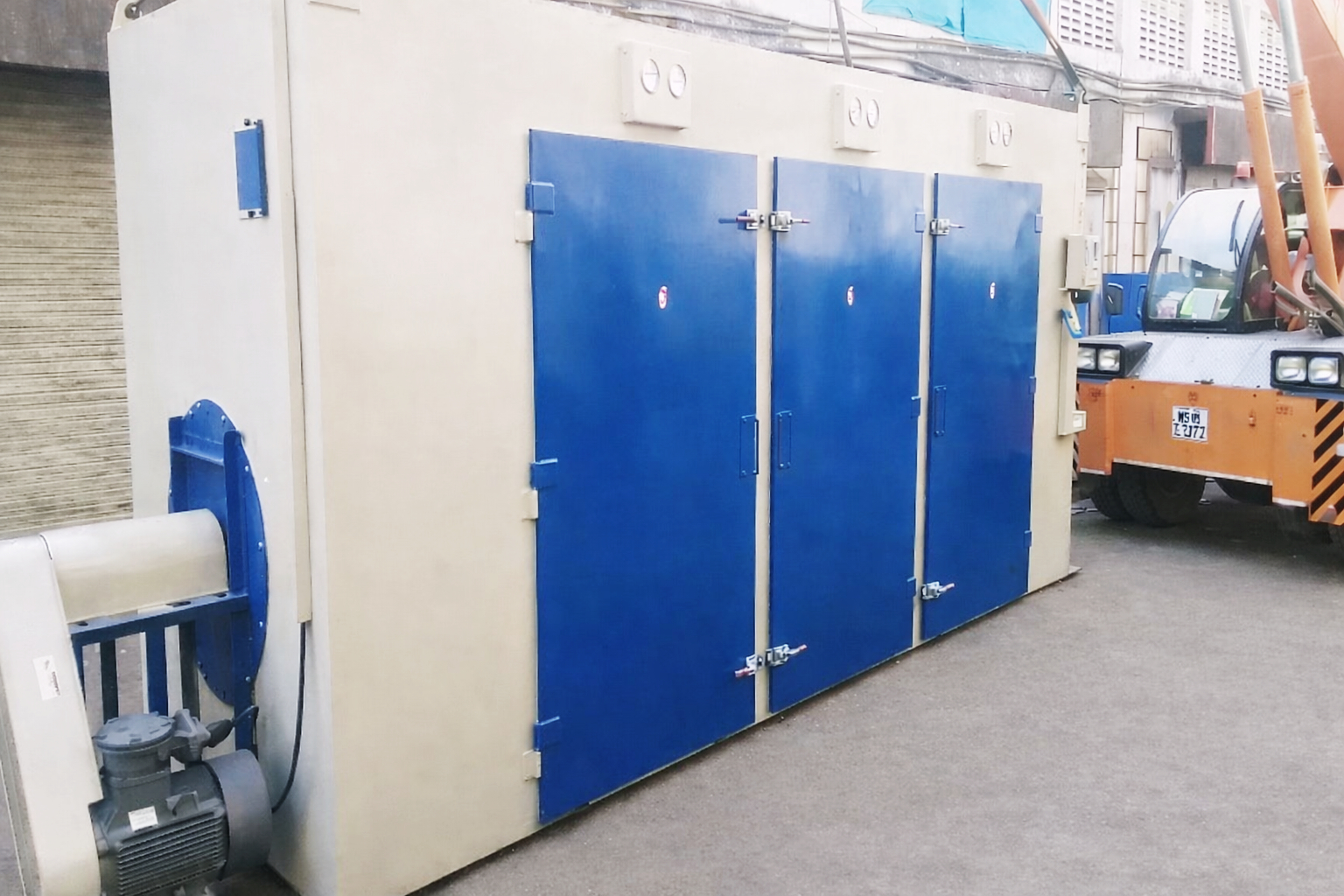

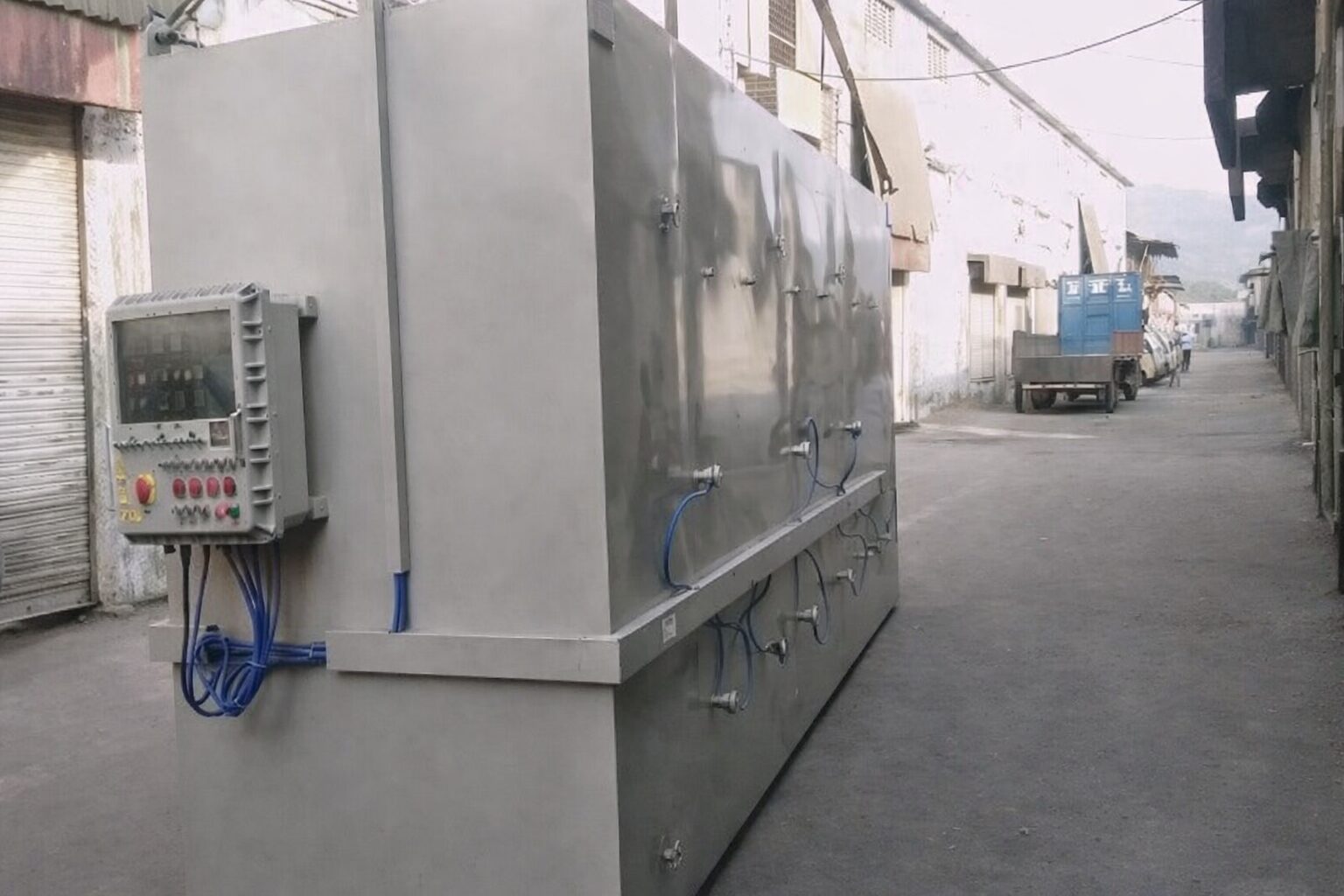

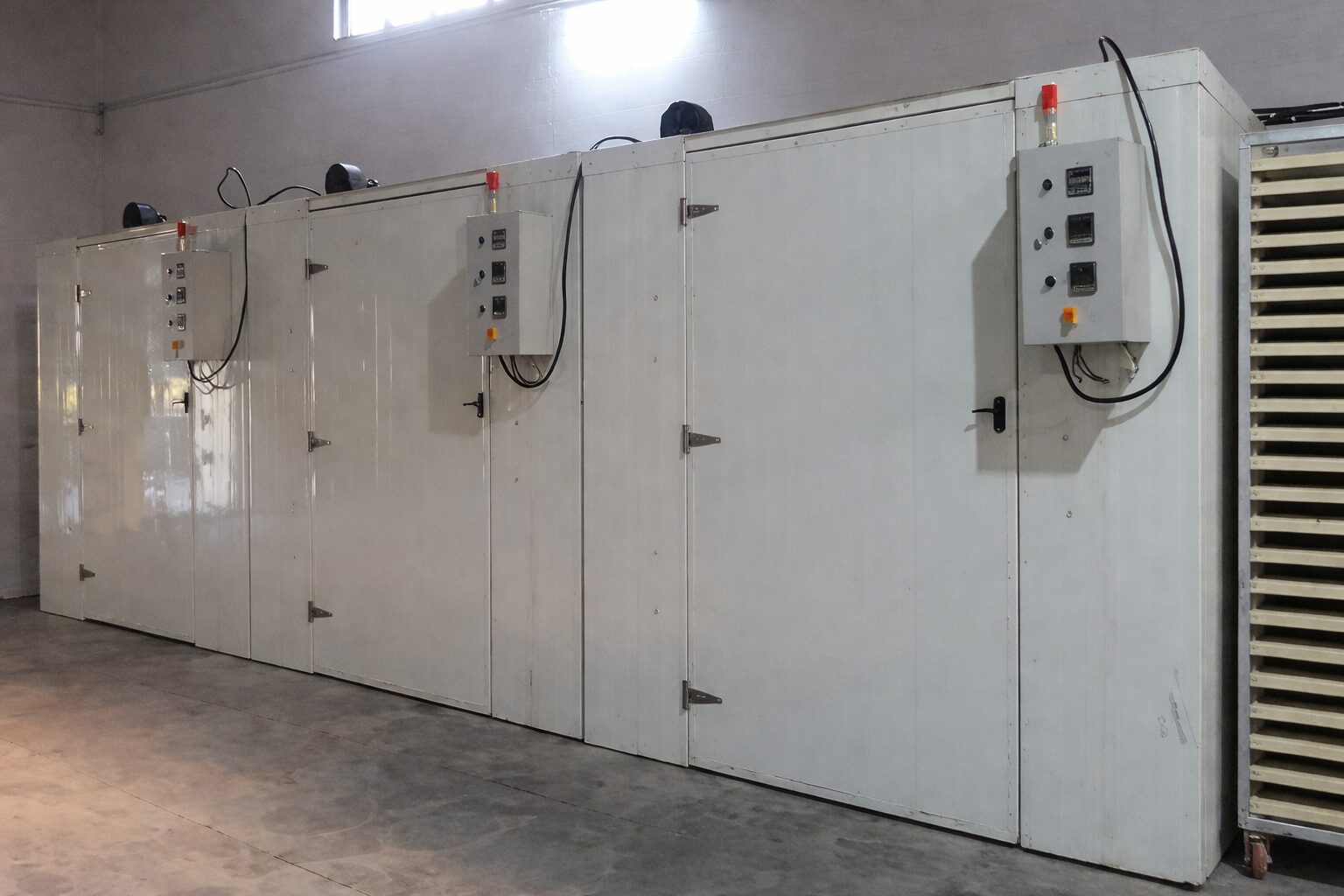

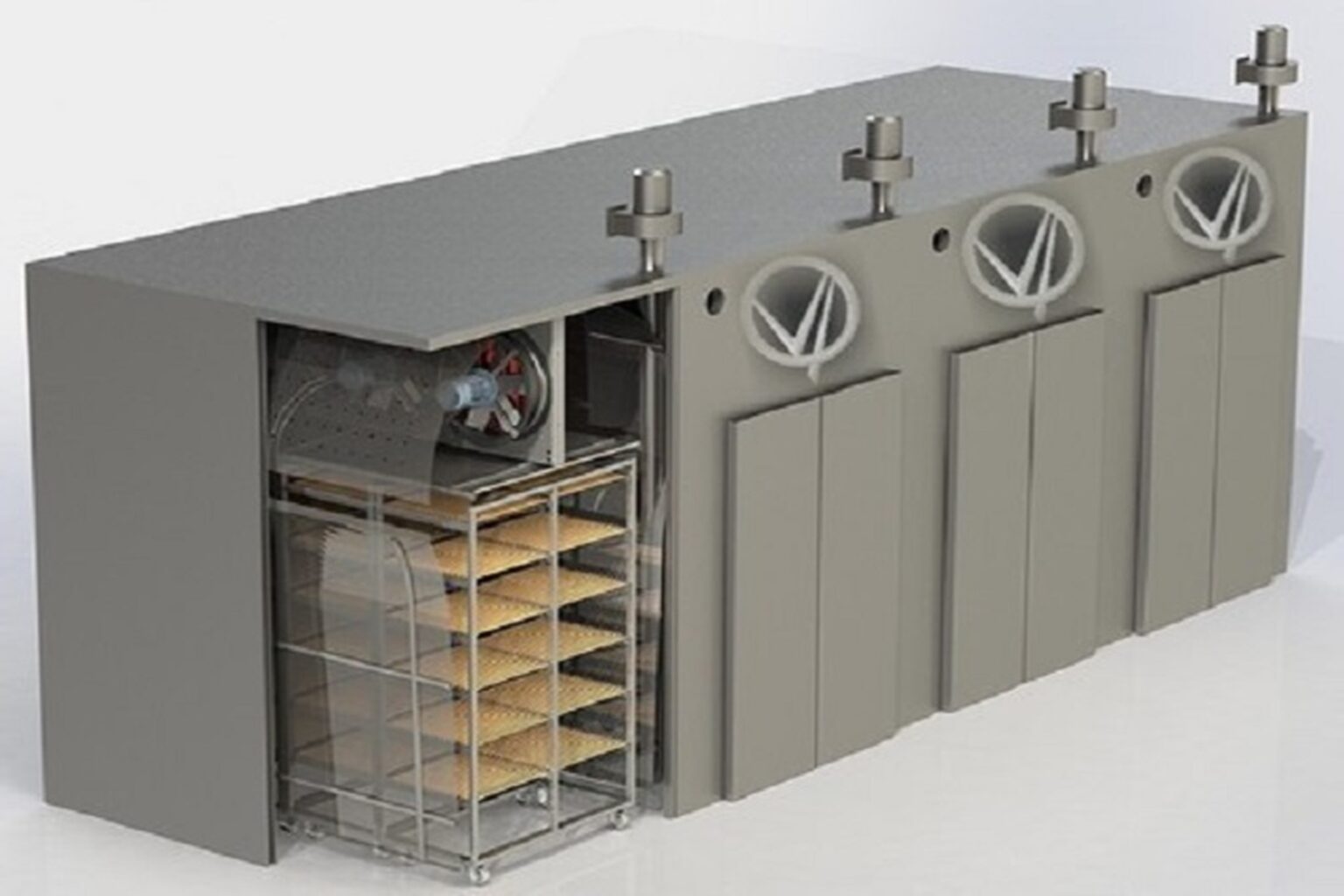

Product Gallery
Frequently Asked Questions (FAQ)
A box dryer is a system that removes moisture using controlled heat and airflow for uniform drying results.
It operates through a process of heat transfer and air circulation to evaporate moisture from materials efficiently.
It provides high efficiency, uniform drying, and low energy consumption.
Industries such as food, chemical, pharmaceutical, and textile rely heavily on these dryers.
Yes, Kerone designs systems tailored to specific process and material needs.
The design ensures quick cleaning and minimal servicing requirements.
Kerone’s systems are optimized for reduced power consumption and higher heat utilization.
Yes, adjustable settings allow customized drying for varied product types.
A high-velocity box dryer recirculates air at significantly higher velocities than a standard box dryer, typically 2–5 m/s at the tray surface versus 0.5–1.5 m/s in conventional designs. Higher velocity improves the convective heat transfer coefficient at the product surface, reducing the boundary layer resistance to moisture evaporation. This results in shorter cycle times, especially during the constant-rate drying phase when surface moisture removal is the limiting step. High-velocity box dryers are preferred when throughput is constrained by drying time, when tray-to-tray variation is unacceptable, or when the product surface must be dried quickly to prevent microbial growth. The trade-off is higher electrical consumption due to larger fan motors.
Temperature mapping is the standard verification method. Calibrated temperature data loggers are placed at multiple tray levels and horizontal positions within the loaded chamber, and a full drying cycle is run. The resulting data shows the maximum temperature differential within the chamber over the entire cycle. For general industrial applications, a ±5°C uniformity across the chamber is typically acceptable. Pharmaceutical applications governed by cGMP guidelines require more stringent mapping, often ±2°C or better with formal IQ/OQ/PQ qualification protocols. Kerone designs baffles, air plenums, and heater arrangements specifically to achieve the required temperature uniformity based on the application's quality standard.
Box dryers can be configured for solvent drying, but the design must incorporate specific safety provisions. These include spark-proof (EX-rated) fan motors and electrical components, exhaust damper control to prevent vapour accumulation above the lower explosive limit, and a continuous exhaust air purge that maintains solvent vapour concentration well below 25% of the LEL. For large installations, solvent recovery condensers capture exhaust vapours for reuse rather than venting them. Dryers intended for flammable solvent service must be engineered and certified to the applicable hazardous area standard (ATEX in Europe, IECEx internationally) and should not be substituted with standard box dryer designs as this creates a serious explosion risk.
Over-loading trays is one of the most common operational mistakes in batch box drying. When product bed depth exceeds the recommended maximum, which varies by material porosity and drying air velocity, the air cannot penetrate the entire bed thickness. The result is a dried surface layer with a wet core, leading to non-uniform moisture content across the batch. Kerone specifies maximum product depth per tray for each application during process design. For dense materials like ceramic tiles or rubber slabs, single-layer loading may be necessary. For granular or particulate products, perforated trays with recommended bed depths of 20–50 mm are typical. Consistent tray loading is essential for reproducible batch results.
Kerone offers several application-specific customisations for box dryers. These include programmable multi-step temperature and humidity profiles for controlled-atmosphere drying of wood or leather; steam injection for humidity control in products that require conditioning rather than drying; nitrogen purge systems for oxygen-sensitive materials; stainless steel construction with sanitary finish for food and pharmaceutical applications; HEPA filtration on inlet air for cleanroom-compatible drying; and explosion-proof construction for flammable materials. Large pharmaceutical box dryers can also be fitted with validated data acquisition systems that record time-temperature profiles for each batch, generating the audit trail required for regulatory submissions.
For heavy products like cast components, thick ceramic slabs, or large rubber mouldings, tray loading by hand is impractical. Trolley-based box dryers use wheeled trolley frames with multiple tray levels that are loaded outside the dryer at ergonomic height using fork-lift or hydraulic trolley jacks, then rolled into the dryer chamber on guide rails. The chamber door seals around the trolley frame. This design eliminates the manual handling of heavy trays, reduces loading time, and allows batch changeover with minimal disruption to production flow. For facilities running multiple product types, dedicated trolleys per product prevent cross-contamination and reduce changeover cleaning requirements.
A robustly constructed industrial box dryer with a heavy-gauge mild or stainless steel body, properly specified insulation, and quality electrical components can remain in productive service for 20–25 years with correct maintenance. The components most likely to require periodic replacement are heating elements (every 5–10 years depending on duty cycle and operating temperature), door seals and gaskets (every 2–4 years), fan bearings (every 3–5 years based on hours of operation), and temperature sensor calibration standards (annually). Kerone maintains a spare parts inventory for its equipment and can supply replacement components on short lead times, reducing the risk of extended production downtime from component failure.
Kerone’s custom-designed heating and processing solutions are built to meet the demands of your growing operations. Whether you’re upgrading equipment, expanding production, or need a tailor-made solution
