High performance Infrared Heaters

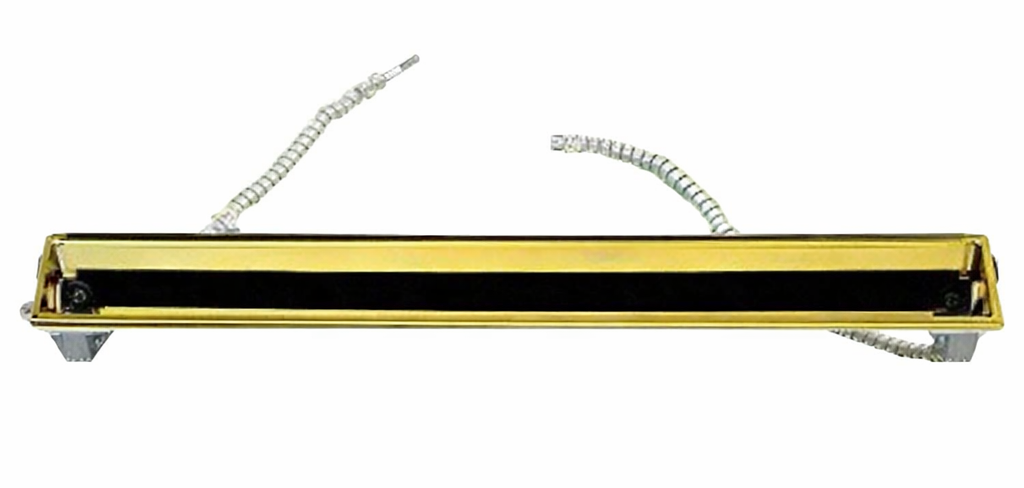

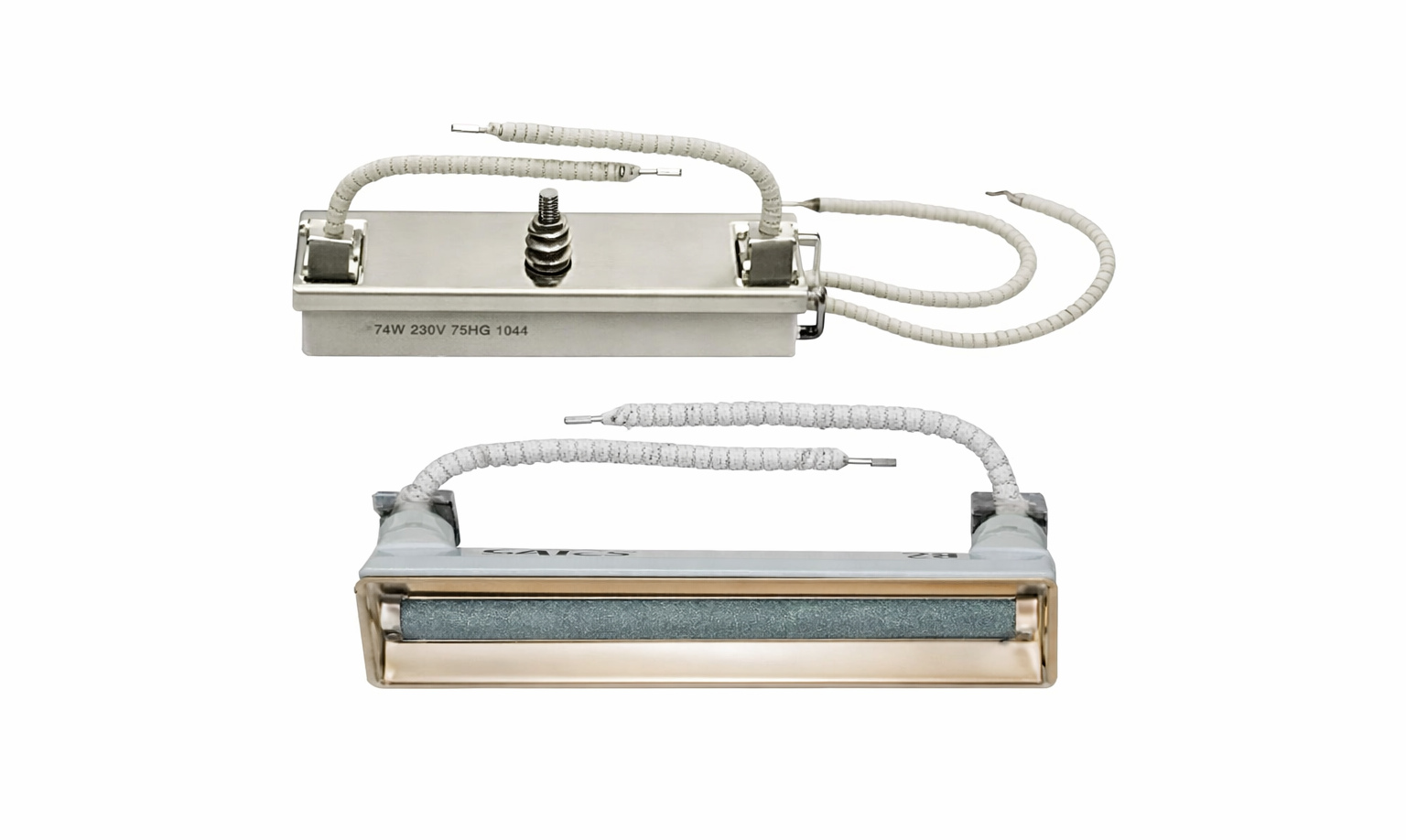

For the process those have high temperature requirement, for such applications high performance Infrared Heaters are more suitable and designed with care to generate and sustain to such high temperature requirement, hence the high performance Infrared Heater heat exchangers are ceramic infrared rod heat exchanger (radiators), which can operate for temperatures up to 1000° C and surface rating up to 87 kw/m2.

To achieve the high efficiency and heat transfer of upto 80% the radiators are gold-plated ceramic parabolic reflector. In this way, these radiators allow material temperatures of up to 700° C or high through speeds. The typical operating temperature of 1000° C is reached in less than one minute.

High performance Infrared heaters are best suitable in applications such as plant construction in which special solution has to be drawn up for the customer’s specific needs and for applications requiring high outputs.

Features:
  • Gold plated reflectors for efficient heat transfer.
  • Operating temperature 1000o C
  • Very low response time
  • Available in 375w/115v and 750w/ 230v
